SR-DS2KM
Deep Well Underwater IP68 Lighting Diving Cylinder Camera
Share
CategoryUnder water IP Camera
5MP Underwater Camera

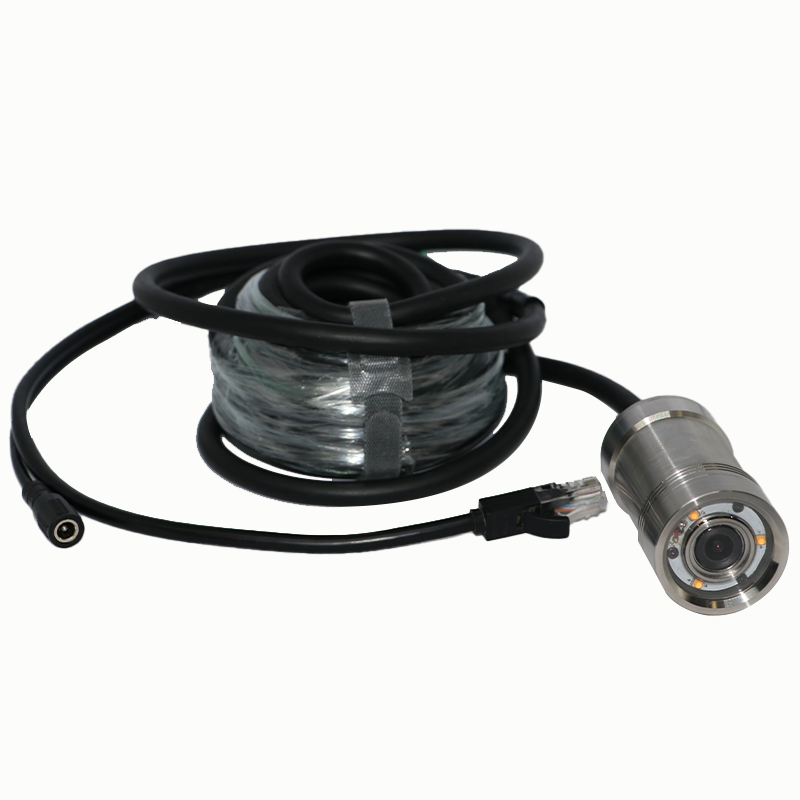

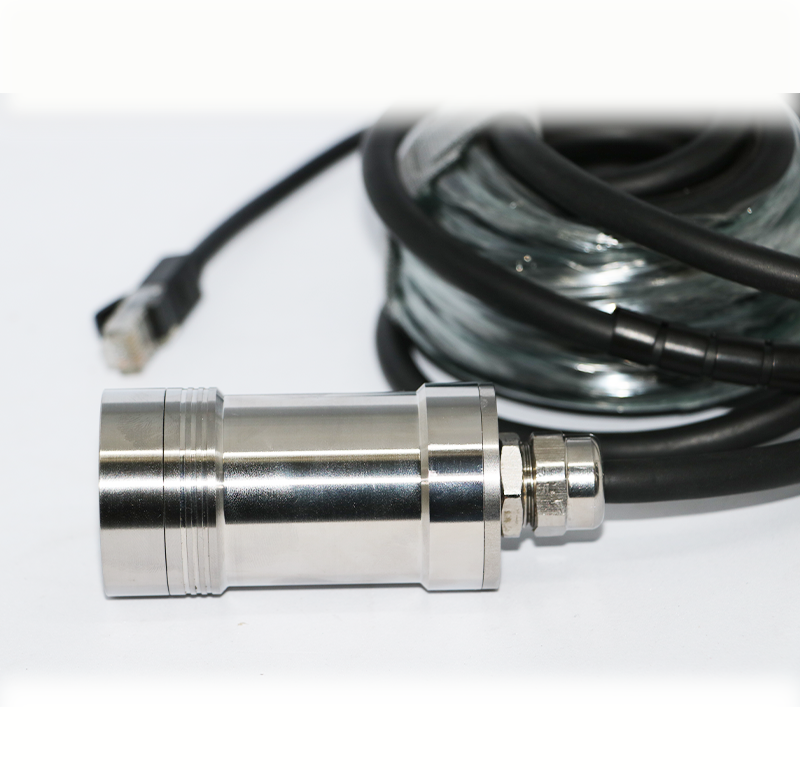

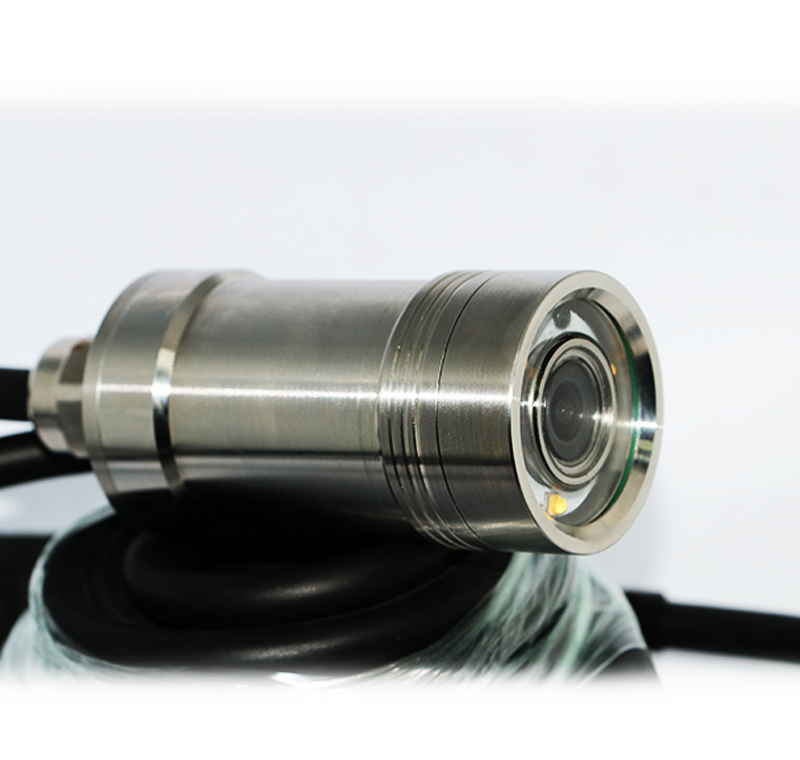

Deep Well Underwater IP68 Lighting Diving Cylinder Camera
Explore underwater depths with exceptional clarity using Securest rugged deep well camera.
Engineered to perform reliably across demanding environments, it is ideal for deep well inspection, ROV external mounting, high-pressure laboratory applications, bridge column detection, and portable underwater visual inspection systems.
Available in 304 or 316L stainless steel for superior durability and consistent performance in even the most challenging operating conditions.
Features
★ Mini Cylinder design, Deepsea use, Max. 2000meter’s depth working environment；
★ 24vDC;
★ Support TF slot is optional;
★ Underwater stainless-steel design, underwater working;
★ 5MP resolution, Wide angle lens;
★ 4pcs Ф28 IR Array，Lighting power adjustable
★ AI: Motion detection
★ Supports Web, Onvif, RTMP, RTSP
★ 10/100M Ethernet RJ45 output.
Specifications
| Camera | Sensor+ISP | 1/2.8″ IMX335 CMOS GK7205V300 |
| Resolution | Mainstream 2560×1920/2560×1440；Substream 800×600/800×448 | |
| Frame rates | 25fps, 32Kbps~6Mbps | |
| Low illumination | [email protected] | |
| Lens | 3.6mm Wide Lens | |
| Optical Zoom | Nil | |
| View angle | Level 90° | |
| Night vision | LED | 4pcs warm lighting |
| Night vision mode | IR/Warm lighting | |
| IR modes | Auto/IR/Full color | |
|
Video Audio Alarm |
Compression | H.265; MPEG4 |
| Resolution |
Main stream 2560×1920 or 2560×1440； Sub-stream 800×600 or 800×448 |
|
| Frame rate | 25fps | |
| Audio Code Rate | Nil | |
| Audio | Nil | |
| Speaker | Nil | |
| Alarm | Motion detection alarm | |
| Networking | LAN | 10/100M Ethernet Port |
| Storage | Storage | NVR Recording |
| Mechanical | Size | 40*95*mm |
| Housing material | 304 stainless steel/ 316L stainless steel is optional | |
| Bracket | customized | |
| Connectors | POE RJ45, DC 24V | |
| Power | DC-24V | |
| Consumption | Lighting on:＜9W | |
| Temperature | -30°C~65°C | |
| Cable | Anti-Corruption Network Cable 20meters | |
| Installation | Underwater | |
| Package | Package size | Size:40*95mm |
| Weight | 0.8kg Housing & 2KG cables |
